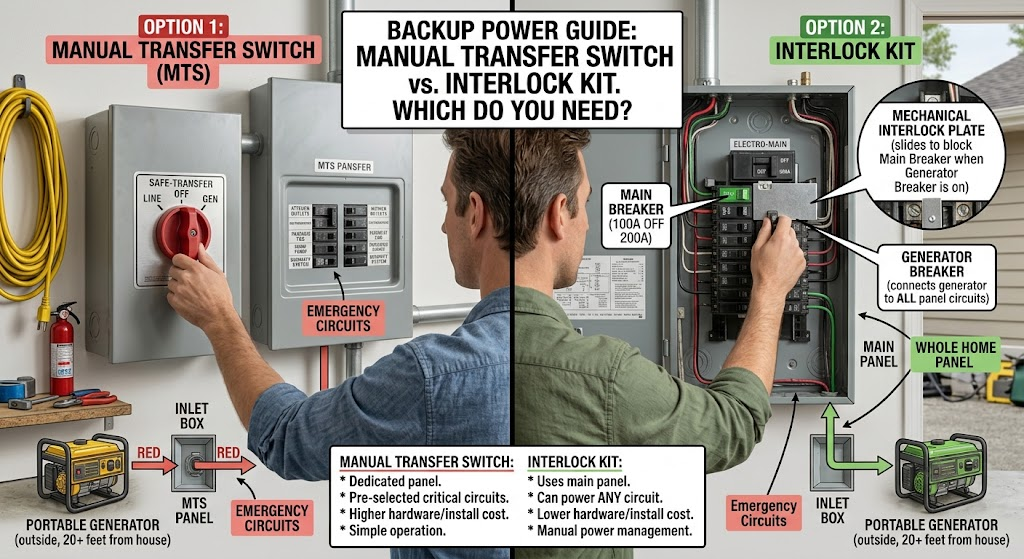

Manual Transfer Switch vs. Interlock Kit: Which Do You Need?

Both a manual transfer switch and an interlock kit safely connect a portable generator to your home’s panel while preventing dangerous backfeed onto utility lines — the National Electrical Code requires this kind of physical isolation for any standby power setup, and both methods satisfy it. An interlock kit is the cheaper, simpler option: a metal plate on your existing panel that lets you power any circuit in the box, one breaker at a time, but requires you to be home and manually manage the breakers. A transfer switch is a separate sub-panel wired to 6–10 pre-selected essential circuits, more expensive to install, but faster and simpler to operate during an actual outage. Neither is universally “better” — the right choice depends on your budget, how hands-on you want to be during an outage, and whether your specific panel has an approved interlock kit available.

Why You Need One of These at All

Never connect a generator directly to your home’s wiring, and never “backfeed” through a dryer outlet — both are illegal in most jurisdictions and genuinely dangerous. If generator power flows backward onto utility lines, it can electrocute line workers who reasonably assume those lines are de-energized, since they have no way of knowing your generator is pushing power the wrong direction. This is exactly why the NEC mandates a mechanical means of isolating your home from the utility grid before generator power can enter your panel — and it’s why “just plugging the generator into an outlet” is never a safe or legal shortcut.

How an Interlock Kit Works

An interlock kit is a simple mechanical plate, typically installed inside your existing panel cover, that physically prevents your main utility breaker and a dedicated generator breaker from both being switched on at the same time. To use it: switch off the main breaker, slide the interlock plate, switch on the generator breaker, then manually turn on whichever individual branch circuit breakers you want powered — you decide in the moment, breaker by breaker.

Advantages:

• Significantly cheaper to install than a transfer switch.
• Gives you access to any circuit in the panel, not just a pre-selected handful — useful if your needs shift outage to outage (say, choosing between a kitchen outlet or a bathroom outlet for a hair dryer, but not both at once).
• Compact — it lives inside your existing panel rather than requiring a separate box on the wall.

Trade-offs:

• You have to physically go to the panel, in the dark if necessary, and manually manage breakers.
• It’s easy to accidentally overload the generator if you don’t track which circuits you’ve switched on and their combined load.
• Not every panel brand has an approved interlock kit — older Federal Pacific and Zinsco panels generally don’t, and typically have other safety concerns that warrant panel replacement regardless.

How a Manual Transfer Switch Works

A transfer switch functions as an independent sub-panel installed alongside your main panel, pre-wired to a fixed set of essential circuits — commonly somewhere between 6 and 10, chosen ahead of time with an electrician. During an outage, you flip a single switch (or a small handful of switches) on that sub-panel to move those circuits from utility power to generator power.

Advantages:

• Simpler and faster to operate during an actual outage — no hunting through breakers in the dark.
• The pre-selected circuits are matched to your generator’s capacity ahead of time by whoever installs it, reducing the risk of accidental overload.
• More visible and easily identifiable as a proper backup power installation to a home inspector or appraiser, which can matter at resale.

Trade-offs:

• More expensive to install, since it requires its own sub-panel and dedicated wiring runs to each selected circuit.
• Less flexible in the moment — you’re limited to the circuits chosen at install time, not whatever you decide you need that day.
• Ongoing maintenance is a bit more involved than a simple interlock plate.

Side-by-Side Comparison

A Note on Automatic Transfer Switches

Both options above assume a portable generator and manual operation. If you’re pairing a standing home-battery system or a whole-house standby generator with automatic switching, that’s a separate category — an automatic transfer switch (ATS) — which senses an outage and switches over without any manual action at all. ATS installations are more expensive still and typically paired with permanently installed standby generators rather than portable units, but they’re worth knowing about if full automation, not just backup capability, is your goal.

Important: This Is Not a DIY Project

Regardless of which option you choose, installation should be performed by a licensed electrician, properly permitted, and inspected according to your local jurisdiction’s requirements. A self-installed, unpermitted interlock or transfer switch isn’t just a code violation — it creates real safety risk and significant liability if something goes wrong.

Frequently Asked Questions

Can I switch from an interlock kit to a transfer switch later? Yes, though it typically means a new installation rather than an upgrade of the existing hardware — budget for it as a separate project rather than assuming the interlock kit’s wiring carries over.

Does an interlock kit work with any portable generator? It works with generators sized appropriately for the breaker and wiring installed, but the kit itself must also be specifically approved for your panel brand and model — check compatibility before purchasing.

Which option is required by my local code? Requirements vary by jurisdiction. Both methods are broadly NEC-compliant when properly installed, but some local authorities have additional requirements or preferences — check with a local licensed electrician familiar with your area’s permitting process.

Is a transfer switch worth the extra cost for a one-time-a-year storm season? It depends on how confident you are managing breakers under stress, in the dark, during an actual event. Many homeowners who travel frequently or prefer the simplest possible operation choose the transfer switch specifically for that peace of mind, even if it’s used only occasionally.
